1N4001 General-Purpose Rectifier Diode

1N4001 General‑Purpose Rectifier Diode – Discrete Components

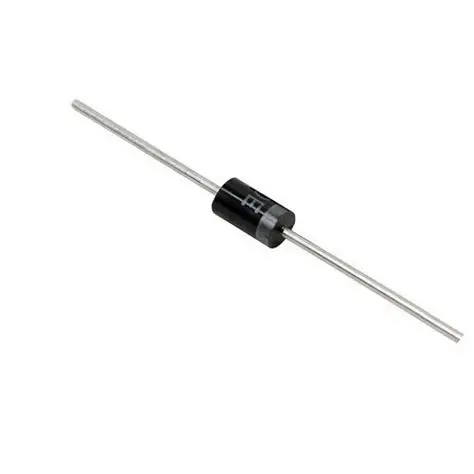

The 1N4001 is a silicon, single‑junction rectifier diode designed to convert alternating current (AC) to direct current (DC) with a maximum reverse voltage of 50 V and a forward current rating of 1 A. Housed in a rugged DO‑41 axial lead package, it’s the workhorse of low‑power power‑supply circuits, motor‑driver protection, and signal‑clipping applications. In the classroom, the 1N4001 gives students a tangible entry point into semiconductor physics: they can explore forward‑bias conduction, reverse‑bias blocking, leakage current, and the concept of a “one‑way valve” for electricity.

What students will learn & why it shines in STEAM
Working with this diode lets learners bridge theory and hands‑on practice. They’ll design and test rectifier bridges, build simple power adapters, and experiment with pulse‑width modulation and voltage‑clamping circuits—activities that reinforce concepts in Science (electric fields and charge carriers), Technology (circuit schematics and PCB layout), Engineering (design iteration and reliability testing), Arts (creative lighting or sound‑installation projects), and Mathematics (calculating forward voltage drop, power dissipation, and efficiency). The 1N4001’s forgiving voltage and current limits make it ideal for iterative prototyping, so students can safely explore failures, troubleshoot, and iterate without costly damage.

Key features that make it classroom‑ready

• Reverse voltage: 50 V (suitable for most low‑voltage labs)
• Forward current: 1 A continuous, 30 A surge capability
• Forward voltage drop: ~0.7 V at 1 A, providing predictable power loss calculations
• Robust DO‑41 axial lead: easy insertion into breadboards, stripboards, or through‑hole PCBs
• Wide temperature range: –65 °C to +150 °C, allowing experiments in varied environments
• Low leakage current: <5 µA at 20 V reverse bias for accurate signal‑conditioning work

Because the 1N4001 is inexpensive, widely stocked, and universally compatible, it empowers educators to build repeatable, real‑world projects that spark curiosity and deepen interdisciplinary understanding, making it a cornerstone component for any STEAM curriculum.
