3-Channel Line Tracker Module
Three‑channel line tracker lets students build, code, and color‑detect paths for hands‑on STEAM fun.
+0 points earned
3‑Channel Line Tracker Module – Light & Color Sensors

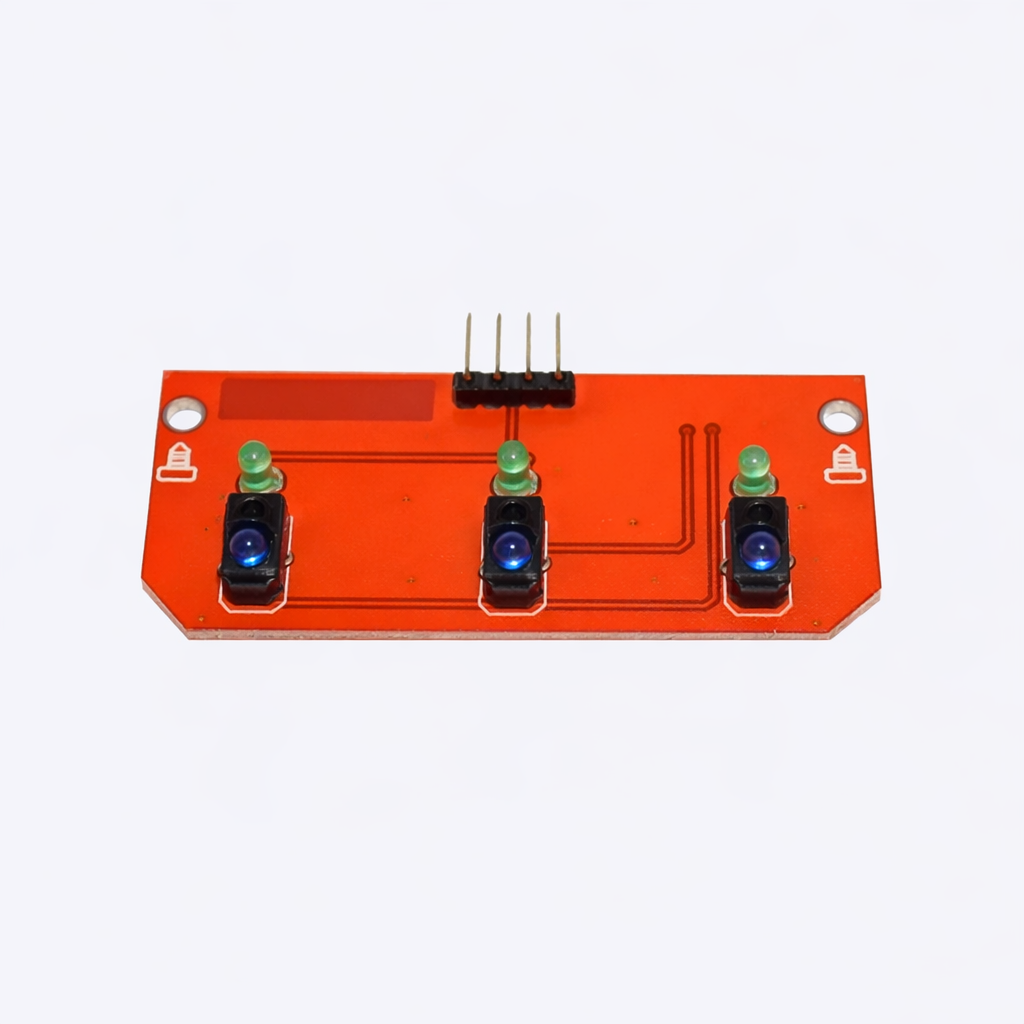

The 3‑Channel Line Tracker Module is a compact, plug‑and‑play sensor board that detects the contrast between a dark line and a light background on up to three separate tracks simultaneously. Designed for Arduino, Raspberry Pi, micro:bit and other popular micro‑controller platforms, the module uses three high‑sensitivity infrared photodiodes paired with on‑board comparators, giving you instant digital “high/low” signals that can drive motors, LEDs, or any other output. It’s perfect for building line‑following robots, autonomous vehicles, or interactive floor‑maps, and it fits neatly onto a standard breadboard or robot chassis.
What students will learn & why it shines in STEAM
- Fundamentals of optics and color detection – how IR light reflects off different surfaces and how a sensor converts that into a binary signal.
- Signal processing basics – using comparators, thresholds, and debounce techniques to produce clean data.
- Programming logic – writing conditional loops, PID control, and sensor fusion for smooth line tracking.
- Mechanical design & prototyping – mounting the module, aligning sensors, and integrating it with wheels or conveyor belts.
- Problem‑solving & iteration – testing with varying line widths, colors, and ambient lighting to refine algorithms.
Key Features
- Three independent IR channels (adjustable sensitivity via onboard potentiometers)
- Digital output (TTL 0 V/5 V) compatible with all major micro‑controllers
- Built‑in ambient‑light compensation for reliable performance under fluorescent, LED, or daylight conditions
- Compact 30 mm × 20 mm footprint, breadboard‑friendly pin header, and optional mounting holes
- Comes with a starter guide, example code, and curriculum worksheets aligned to NGSS and ISTE standards
Because it blends light physics, electronics, coding, and mechanical engineering into a single hands‑on project, the 3‑Channel Line Tracker Module is an ideal gateway for STEAM classrooms. It encourages iterative design, data‑driven decision‑making, and interdisciplinary teamwork, skills that prepare students for real‑world engineering challenges while keeping the learning experience fun and engaging.
