BC548 NPN Transistor for Arduino

BC548 NPN Transistor – Ready for Arduino Projects

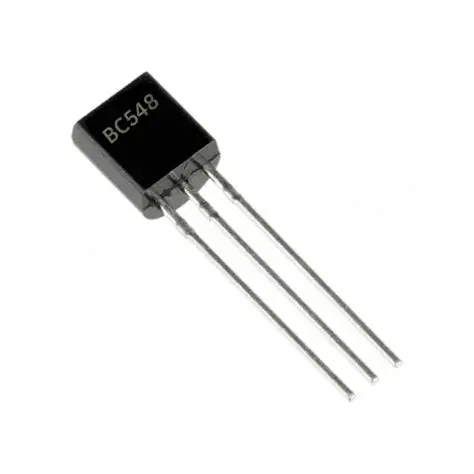

The BC548 is a classic low‑noise, general‑purpose NPN transistor that fits perfectly into any Arduino‑based circuit. Packaged in a compact TO‑92 case, it can handle up to 45 V V_CE and 100 mA I_C, with a typical current gain (hFE) of 110‑800, making it ideal for switching LEDs, small motors, relays, and sensor signals straight from the Arduino’s digital pins. Each pack comes with a full datasheet, a handy breadboard-friendly layout, and a quick‑start guide so students can get from “what is a transistor?” to a working prototype in minutes.

What Students Will Learn
Working with the BC548 introduces learners to the fundamentals of semiconductor physics, current amplification, and digital‑to‑analog control. By wiring the transistor as a switch or an amplifier, students practice Ohm’s Law, calculate base resistor values, and write Arduino code to drive real‑world loads. The hands‑on experiments reinforce concepts in circuitry, signal conditioning, and troubleshooting, while the accompanying lesson plans connect these ideas to math (calculating gain and power dissipation) and technology (integrating code with hardware).

Key Features & STEAM Benefits

• Robust Specs: 45 V V_CE, 100 mA I_C, hFE 110‑800, low leakage.
• Arduino‑Ready: Simple pinout (Collector, Base, Emitter) and 5 V logic compatibility.
• Educational Pack: Includes a starter board, resistor kit, and printable experiment sheets.
• STEAM‑Focused: Merges Science (semiconductor behavior), Technology (Arduino programming), Engineering (circuit design), Arts (creative project builds), and Math (calculations for biasing and power).

Because the BC548 is inexpensive, reliable, and easy to integrate, it gives students a tangible entry point into electronics while encouraging interdisciplinary thinking; exactly the kind of hands‑on learning that fuels curiosity and drives the next generation of innovators.
