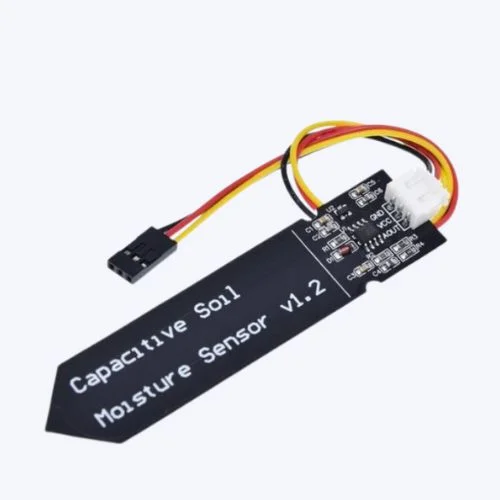

Capacitive Soil Moisture Sensor For Arduino

Capacitive Soil Moisture Sensor for Arduino – a compact, corrosion‑free sensor that measures the volumetric water content of soil by detecting changes in its dielectric constant. The sensor’s flexible PCB probe slides easily into any pot or garden bed, and its built‑in signal‑conditioning circuit delivers a clean analog voltage (0 – 5 V) plus an optional digital threshold output that plugs straight into any Arduino, ESP32, or Raspberry Pi Pico board.

With this module, students explore the science of water in soil, learn how capacitance changes with moisture, and write code to read, calibrate, and graph real‑time data. They’ll practice circuit wiring, develop algorithms for threshold alerts, and design low‑power data‑logging or IoT watering systems, bridging physics, biology, computer science, and mathematics.

Key Features

• Non‑metallic, corrosion‑resistant probe for long‑term use
• Wide measurement range (0 % – 100 % soil moisture) with 10‑bit resolution
• Analog voltage output + optional digital “wet/dry” pin
• Operates from 3.3 V to 5 V, compatible with all Arduino‑compatible boards
• Low power draw (< 5 mA) for battery‑powered projects
• Easy‑to‑use Arduino library and example sketches

Why it shines in STEAM classrooms The sensor turns abstract concepts like dielectric permittivity and water cycles into tangible, data‑driven experiments. Learners design and test automated irrigation prototypes (engineering), visualize moisture trends with graphs or artful dashboards (arts & math), and discuss real‑world applications from sustainable farming to smart cities (science & technology). The hands‑on, interdisciplinary workflow makes it an ideal gateway to project‑based STEAM learning.
