MQ‑2 Gas Sensor Module – Reliable Detection of Combustible Gases & Smoke

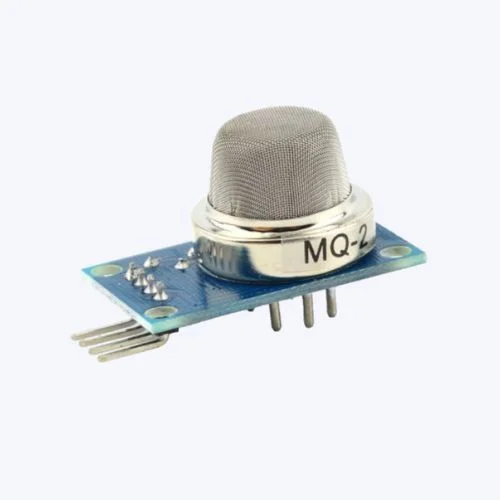

The MQ‑2 is a compact, low‑cost sensor board that can instantly detect flammable gases (such as LPG, propane, methane, and hydrogen) and smoke particles in the surrounding air. Built around the proven MQ‑2 semiconductor element, the module includes a built‑in heater, analog voltage output, and a digital “ALARM” pin that triggers when concentrations exceed a configurable threshold. It plugs directly into any Arduino, Raspberry Pi, or micro‑controller development board, making it perfect for classroom labs, robotics projects, and environmental‑monitoring prototypes.

Students who work with the MQ‑2 will explore the chemistry of combustion, learn how gas concentration is translated into electrical signals, and master data‑logging and real‑time visualization techniques. The hands‑on experience reinforces concepts in physics (heat transfer, semiconductor behavior), chemistry (oxidation reactions, safety limits), engineering (circuit design, sensor calibration), and mathematics (curve‑fitting, statistical analysis). By designing alerts, building air‑quality dashboards, or integrating the sensor into smart‑home safety systems, learners gain a full STEAM workflow from hypothesis to prototype to presentation.

Key features include:

• Wide detection range (300 ppm – 10 % LEL) for LPG, propane, methane, hydrogen, and smoke
• Adjustable sensitivity via a potentiometer and programmable alarm threshold
• Dual output (analog voltage for precise readings, digital pin for instant on/off alerts)
• Fast response time (< 1 s) and low power consumption (≈ 150 mA at 5 V)
• Plug‑and‑play pin header, on‑board voltage regulator, and robust metal housing for classroom durability.

Because it bridges real‑world environmental challenges with tangible coding and circuit‑building activities, the MQ‑2 module is an ideal STEAM tool. It empowers students to investigate fire safety, indoor air quality, and IoT‑enabled monitoring while sharpening problem‑solving, data‑analysis, and interdisciplinary collaboration skills; key competencies for the next generation of engineers and scientists.
