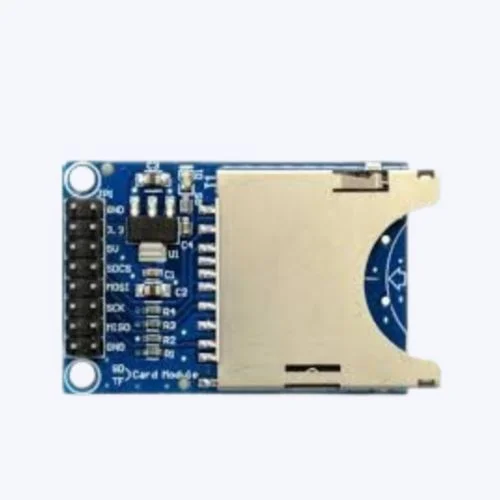

SD Card Reader Module TS0470

SD Card Reader Module TS0470 – a compact, plug‑and‑play interface that lets any microcontroller or single‑board computer read and write standard SD, micro‑SD, and mini‑SD cards. Housed in a sturdy, breadboard‑compatible package, the TS0470 features a 5 V‑tolerant SPI bus, automatic level shifting, and a built‑in voltage regulator so it works seamlessly with Arduino, Raspberry Pi, ESP‑32, and other classroom‑friendly platforms. Its clear silkscreen markings and snap‑in pins make wiring a breeze, while the included software library provides ready‑made functions for file‑system access, data logging, and firmware updates.

With the TS0470, students explore real‑world data handling: they learn how to format an SD card, create and read text or binary files, store sensor measurements, and even build simple multimedia projects such as photo galleries or audio playback devices. The module introduces core concepts of digital storage, binary encoding, and error‑checking, bridging hardware design with software development in a hands‑on, inquiry‑driven environment.

Key Features

• Supports SD, micro‑SD, and mini‑SD cards up to 32 GB (SDHC)
• SPI interface with automatic 3.3 V/5 V level shifting
• Breadboard‑compatible footprint and robust snap‑in pins
• On‑board voltage regulator for stable operation from 5 V or 3.3 V supplies
• Open‑source Arduino/PlatformIO library with example sketches and Python scripts

Why it shines in STEAM education – The TS0470 turns abstract data concepts into tangible projects, letting learners collect, store, and retrieve information just like professional engineers. It fuels interdisciplinary challenges: science students log experiment results, technology classes program data‑driven apps, engineering teams design portable data loggers, art projects incorporate image and sound files, and math lessons explore file‑size calculations and error‑checking algorithms. By providing a reliable, low‑cost gateway to digital memory, the TS0470 empowers students to prototype, iterate, and showcase their creations, all essential skills for the modern STEAM curriculum.
